Kyocera DRX-R

Manufacturercutting materialcutting edge diameter [mm]Max. cutting edge diameter [mm]Usable length [mm]Length of chip groove [mm]Internal coolingNumber of cutting edges [n]ToleranceShank typeChucking diameter [mm]Overall length [mm]

NETTO

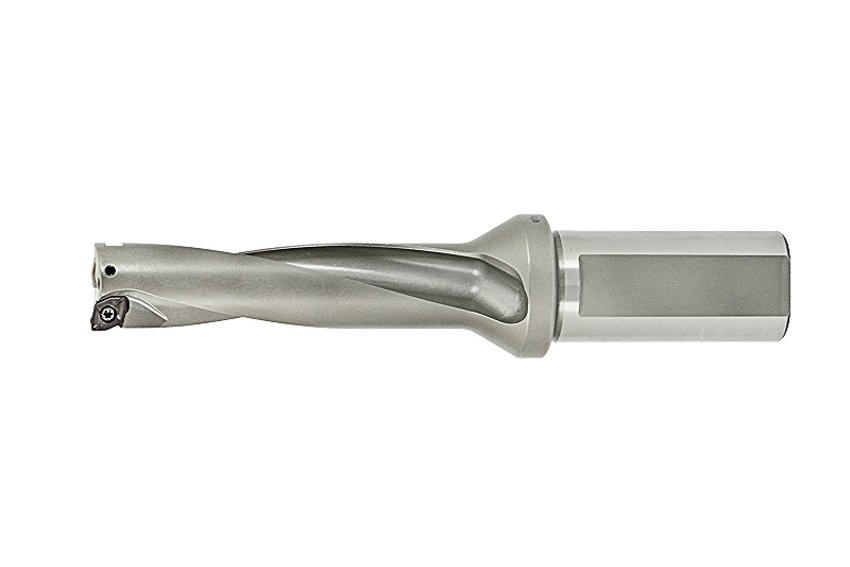

S20-DRXR120M-2-03 Insert drill 2xD MagicDrill DRX-R Manufacturer: Kyocera | cutting material: Steel | cutting edge diameter [mm]: 12 | Usable length [mm]: 24

Details

Item available in 2-3 working days

CHF 217.00

KyoceraSteel122424Yes2with clamping surfaces2088
NETTO

S20-DRXR120M-3-03 Insert drill 3xD MagicDrill DRX-R Manufacturer: Kyocera | cutting material: Steel | cutting edge diameter [mm]: 12 | Usable length [mm]: 36

Details

Item available in 2-3 working days

CHF 227.00

KyoceraSteel123636Yes2with clamping surfaces20100
NETTO

S20-DRXR120M-4-03 Insert drill 4xD MagicDrill DRX-R Manufacturer: Kyocera | cutting material: Steel | cutting edge diameter [mm]: 12 | Usable length [mm]: 48

Details

Item available in 2-3 working days

CHF 263.00

KyoceraSteel124848Yes2with clamping surfaces20112
NETTO

S20-DRXR120M-5-03 Insert drill 5xD MagicDrill DRX-R Manufacturer: Kyocera | cutting material: Steel | cutting edge diameter [mm]: 12 | Usable length [mm]: 60

Details

Item available in 2-3 working days

CHF 283.00

KyoceraSteel126060Yes2with clamping surfaces20120
NETTO

S20-DRXR125M-3-03 Insert drill 3xD MagicDrill DRX-R Manufacturer: Kyocera | cutting material: Steel | cutting edge diameter [mm]: 12.5 | Usable length [mm]: 37.5

Details

Item available in 2-3 working days

CHF 227.00

KyoceraSteel12.537.537.5Yes2with clamping surfaces20102
NETTO

S20-DRXR125M-4-03 Insert drill 4xD MagicDrill DRX-R Manufacturer: Kyocera | cutting material: Steel | cutting edge diameter [mm]: 12.5 | Usable length [mm]: 50

Details

Item available in 2-3 working days

CHF 263.00

KyoceraSteel12.55050Yes2with clamping surfaces20114
NETTO

S20-DRXR130M-2-03 Insert drill 2xD MagicDrill DRX-R Manufacturer: Kyocera | cutting material: Steel | cutting edge diameter [mm]: 13 | Usable length [mm]: 26

Details

Item available in 2-3 working days

CHF 217.00

KyoceraSteel132626Yes2with clamping surfaces2090
NETTO

S20-DRXR130M-3-03 Insert drill 3xD MagicDrill DRX-R Manufacturer: Kyocera | cutting material: Steel | cutting edge diameter [mm]: 13 | Usable length [mm]: 39

Details

Item available in 2-3 working days

CHF 227.00

KyoceraSteel133939Yes2with clamping surfaces20103
NETTO

S20-DRXR130M-4-03 Insert drill 4xD MagicDrill DRX-R Manufacturer: Kyocera | cutting material: Steel | cutting edge diameter [mm]: 13 | Usable length [mm]: 52

Details

Item available in 2-3 working days

CHF 263.00

KyoceraSteel135252Yes2with clamping surfaces20116
NETTO

S20-DRXR130M-5-03 Insert drill 5xD MagicDrill DRX-R Manufacturer: Kyocera | cutting material: Steel | cutting edge diameter [mm]: 13 | Usable length [mm]: 65

Details

Item available in 2-3 working days

CHF 283.00

KyoceraSteel136565Yes2with clamping surfaces20125
NETTO

S20-DRXR135M-3-04 Insert drill 3xD MagicDrill DRX-R Manufacturer: Kyocera | cutting material: Steel | cutting edge diameter [mm]: 13.5 | Usable length [mm]: 40.5

Details

Item available in 2-3 working days

CHF 227.00

KyoceraSteel13.540.540.5Yes2with clamping surfaces20105
NETTO

S20-DRXR135M-4-04 Insert drill 4xD MagicDrill DRX-R Manufacturer: Kyocera | cutting material: Steel | cutting edge diameter [mm]: 13.5 | Usable length [mm]: 54

Details

Item available in 2-3 working days

CHF 263.00

KyoceraSteel13.55454Yes2with clamping surfaces20118
NETTO

S20-DRXR140M-2-04 Insert drill 2xD MagicDrill DRX-R Manufacturer: Kyocera | cutting material: Steel | cutting edge diameter [mm]: 14 | Usable length [mm]: 28

Details

Item available in 2-3 working days

CHF 217.00

KyoceraSteel142828Yes2with clamping surfaces2092
NETTO

S20-DRXR140M-3-04 Insert drill 3xD MagicDrill DRX-R Manufacturer: Kyocera | cutting material: Steel | cutting edge diameter [mm]: 14 | Usable length [mm]: 42

Details

Item available in 2-3 working days

CHF 227.00

KyoceraSteel144242Yes2with clamping surfaces20106
NETTO

S20-DRXR140M-4-04 Insert drill 4xD MagicDrill DRX-R Manufacturer: Kyocera | cutting material: Steel | cutting edge diameter [mm]: 14 | Usable length [mm]: 56

Details

Item available in 2-3 working days

CHF 263.00

KyoceraSteel145656Yes2with clamping surfaces20120
NETTO

S20-DRXR140M-5-04 Insert drill 5xD MagicDrill DRX-R Manufacturer: Kyocera | cutting material: Steel | cutting edge diameter [mm]: 14 | Usable length [mm]: 70

Details

Item available in 2-3 working days

CHF 283.00

KyoceraSteel147070Yes2with clamping surfaces20134
NETTO

S20-DRXR145M-3-04 Insert drill 3xD MagicDrill DRX-R Manufacturer: Kyocera | cutting material: Steel | cutting edge diameter [mm]: 14.5 | Usable length [mm]: 43.5

Details

Item available in 2-3 working days

CHF 227.00

KyoceraSteel14.543.543.5Yes2with clamping surfaces20108
NETTO

S20-DRXR145M-4-04 Insert drill 4xD MagicDrill DRX-R Manufacturer: Kyocera | cutting material: Steel | cutting edge diameter [mm]: 14.5 | Usable length [mm]: 58

Details

Item available in 2-3 working days

CHF 263.00

KyoceraSteel14.55858Yes2with clamping surfaces20122
